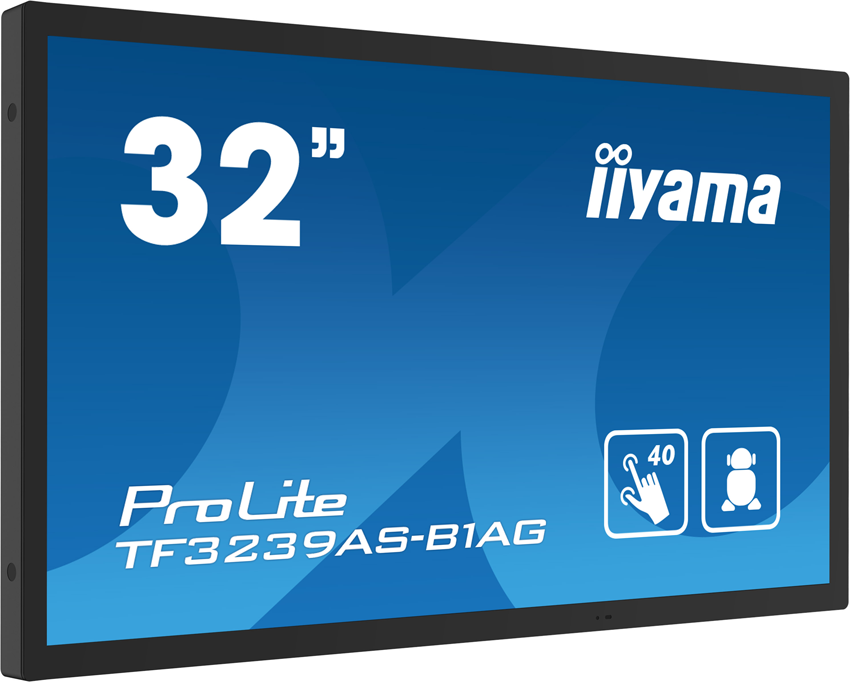

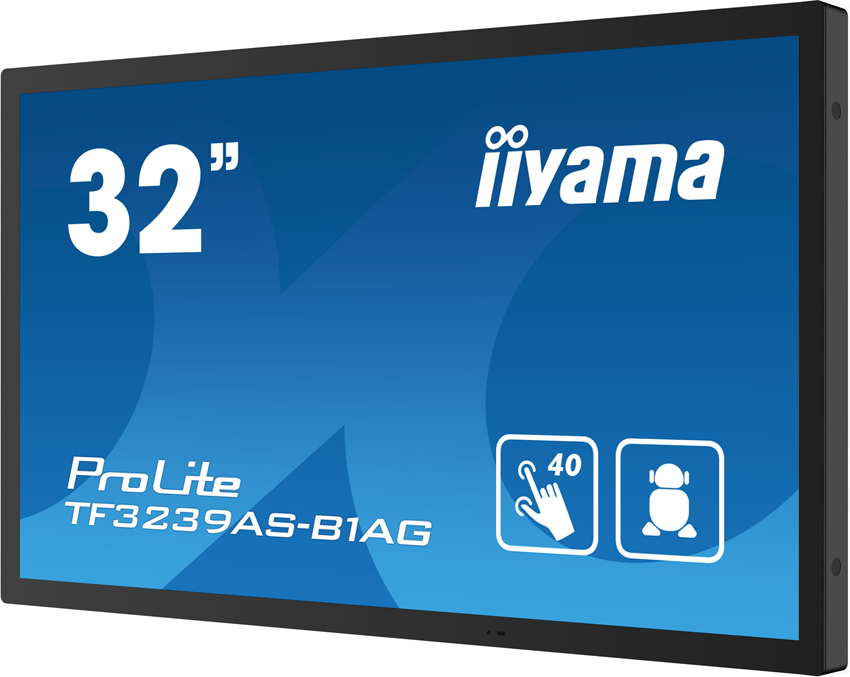

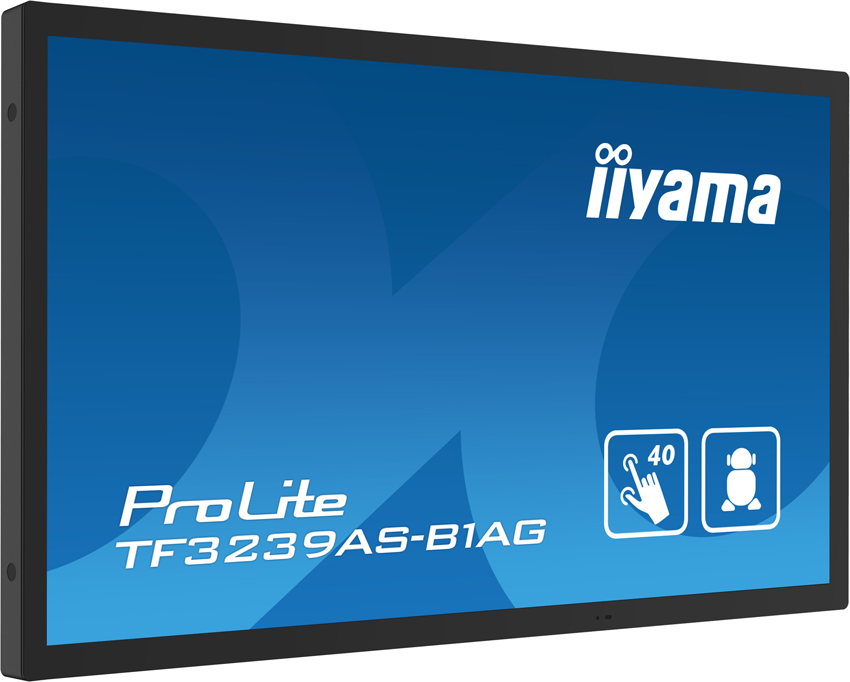

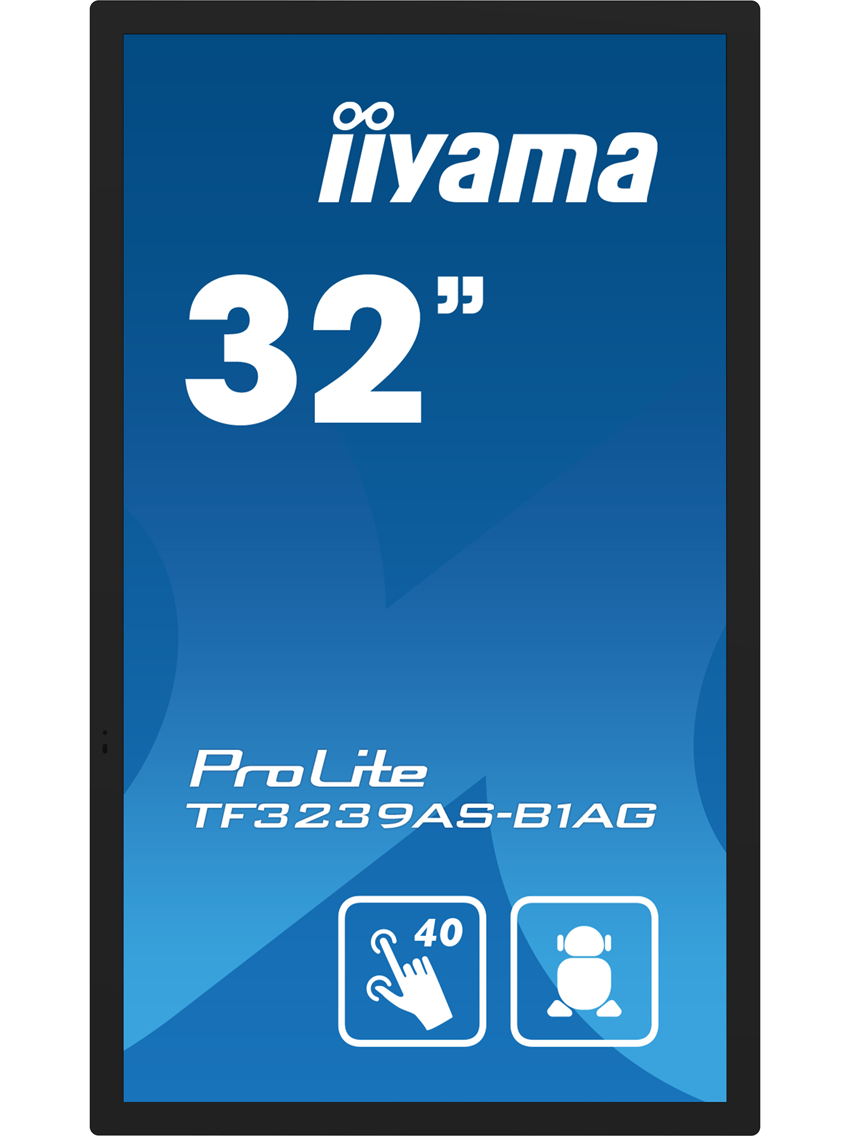

iiyama ProLite TF3239AS-B1AG - 32 inch - 435 cd/m² - Full-HD - 1920x1080 pixel - Open Frame - 40 point - Multi Touch Display
Everything you need to know about shipping and stock levels
estimated delivery date: 02/06/2025 - 04/06/2025
Real-time stock overview
As a iiyama Platinum Partner
- Individual offers and project prices
- Direct contact with the manufacturer
- Specialist trade advice
- Order acceptance by shop, e-mail, telephone, live chat or fax
- On-Site service appointments
The ProLite TF3239AS-B1AG has 40 multi-touch points (HID, only if supported by the operating system) and utilises capacitive touch technology. This utilises a sensor network of micro-fine wires that are integrated into the glass surface. Touching the glass changes the electrical signals. This allows the touch position to be calculated and passed on to the controller. An incredible advantage of this technology is that it is very consistent: thanks to the IP-certified glass surface and the 6 mm thick safety glass, the screen is very durable and insensitive to knocks and scratches. Your audience is offered a fast and accurate touch response with vivid details for an interactive experience. A good choice for high usage environments such as retail, interactive POS or even hotel reception. You can operate the touch display with your fingers and even with latex gloves. Capacitive touch technology (or PCAP technology, as it is also known) is significantly better and of higher quality than the infrared technology often used, especially in the digital signage sector.
Thanks to the high-quality anti-glare coating, reflections from external light sources that could affect colour and contrast are reduced. It also makes the display less susceptible to dust, grease and dirt particles, which is a major plus point, especially in the retail sector. The full HD resolution (1920x1080 pixels) does the rest and ensures perfect image reproduction. The touch display also has a brightness of 435 cd/m², which is perfectly adequate for bright locations without sunlight, and a contrast ratio of 1200:1. The result: you get excellent colours and sharp images. This is particularly impressive if these attributes are important to you. Let's take a car dealership as an example, where customers can put together their dream car and its equipment themselves on the display. Low contrast values and a weak resolution would distort the real colour characteristics of the product and be counterproductive for the customer. The ProLite TF3239AS-B1AG has a 24/7 runtime release so that you can utilise the multi-touch display to its full extent, meaning that it can be used 24 hours a day, 7 days a week. This is another advantage for retailers, as the display can play your content even on Sundays and public holidays. This is also important for airports and railway stations, as departure and arrival times are round the clock.

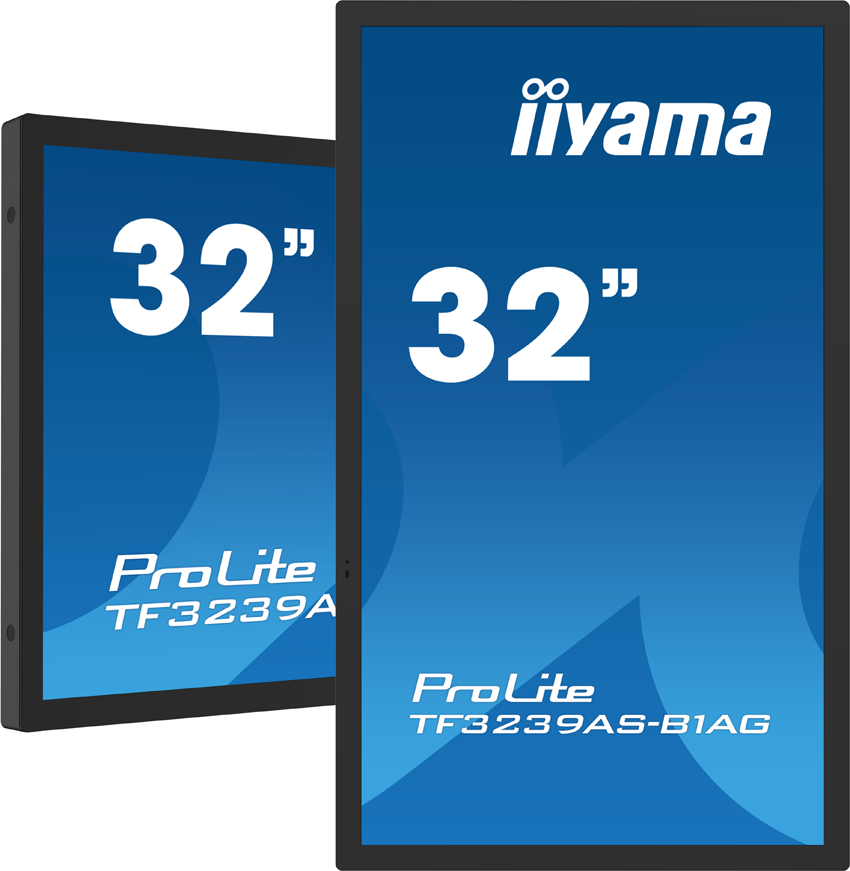

A highlight of the iiyama ProLite TF3239AS-B1AG is its orientation. The display is designed for operation in portrait and landscape format. The display also offers a "face-up" installation option. This allows you to mount the iiyama ProLite TF3239AS-B1AG so that it faces upwards, similar to a table or horizontal surface. Only very few displays on the market have this option. Normally these have a maximum tilt angle of up to 15°. Use the display as an interactive table in museums and exhibitions to inform visitors with the help of digital content and to explore exhibits, for example. This installation option can of course be used as an interactive learning table in the training sector, but the ProLite TF3239AS-B1AG can also be used in the corporate sector for brainstorming sessions or interactive team collaboration.

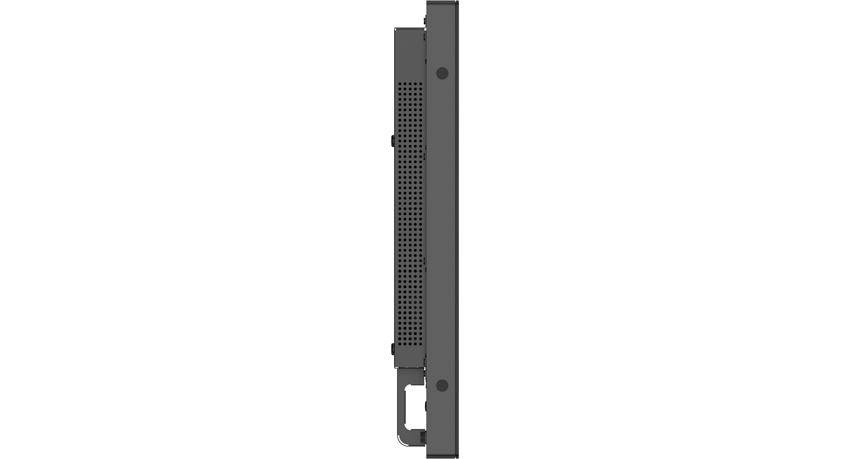

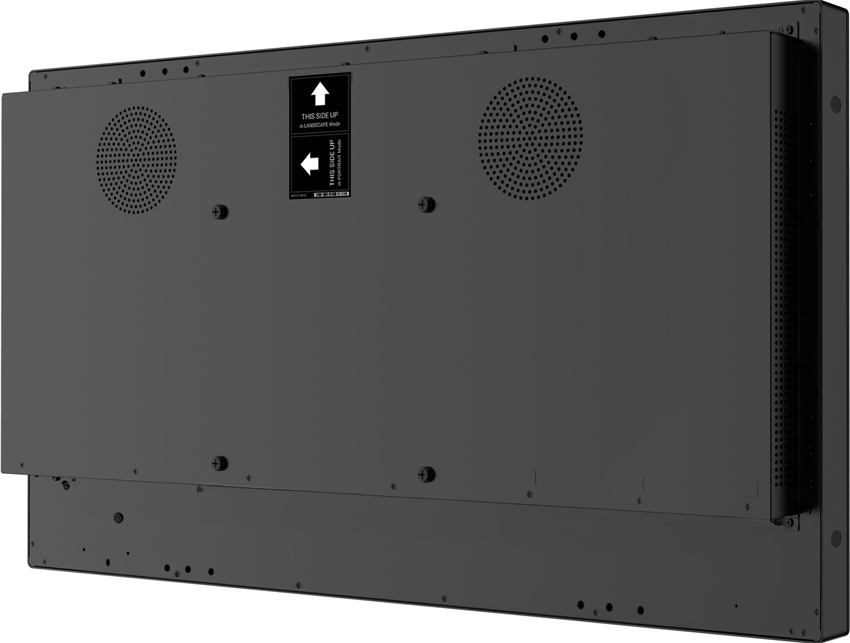

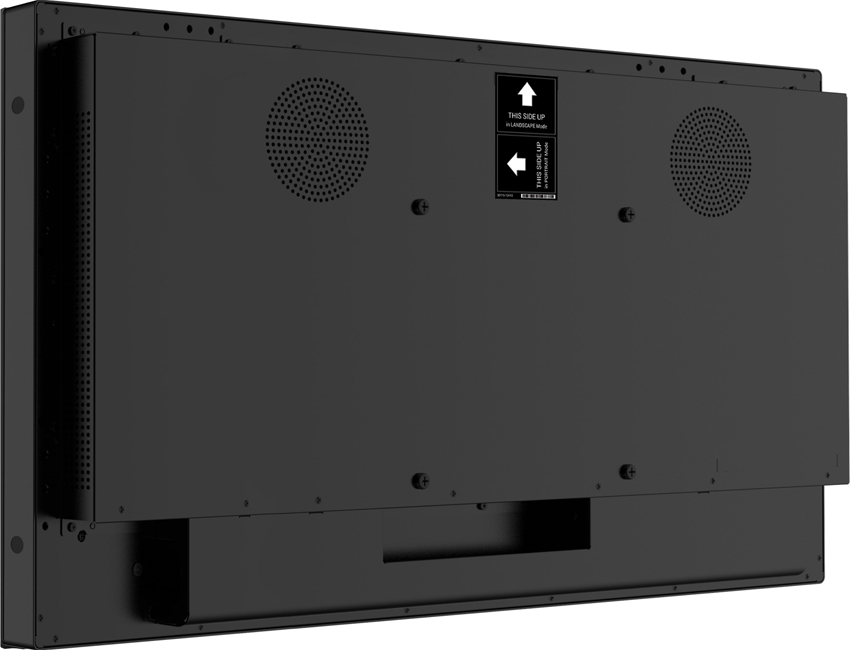

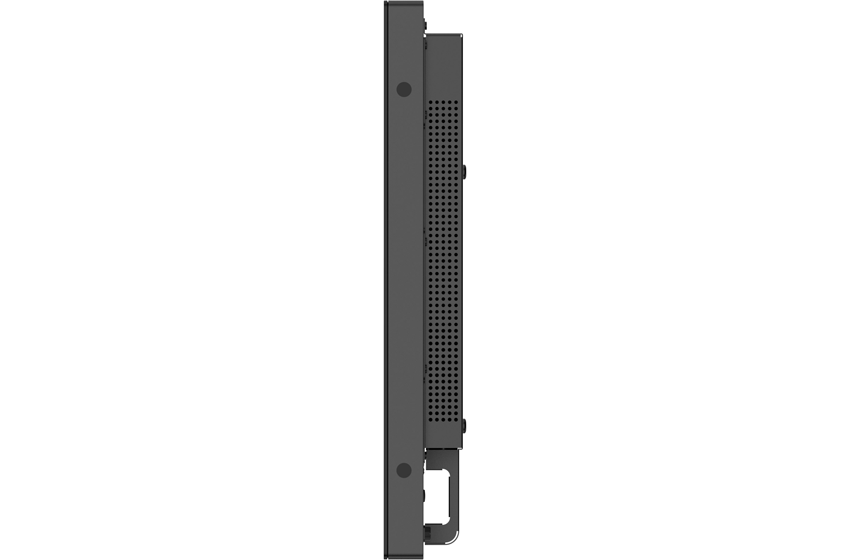

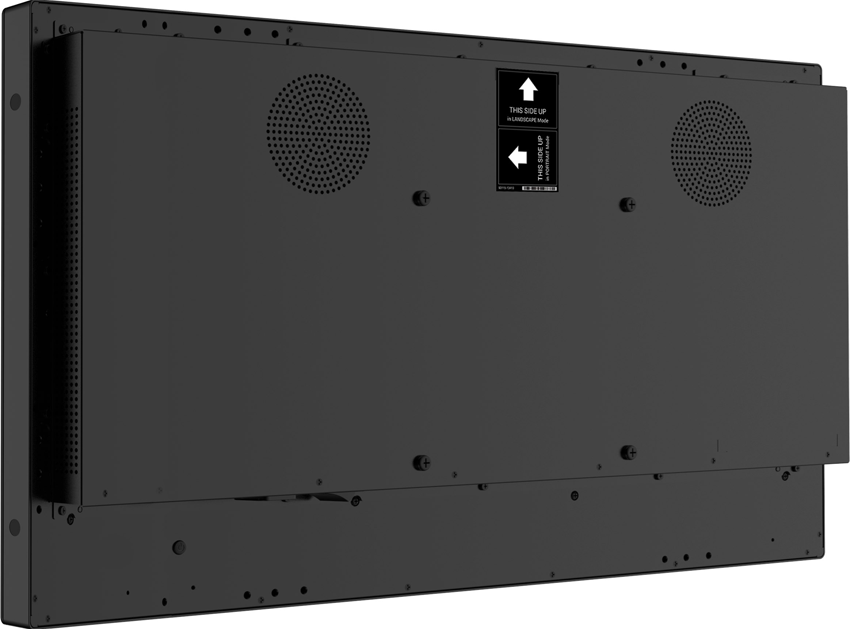

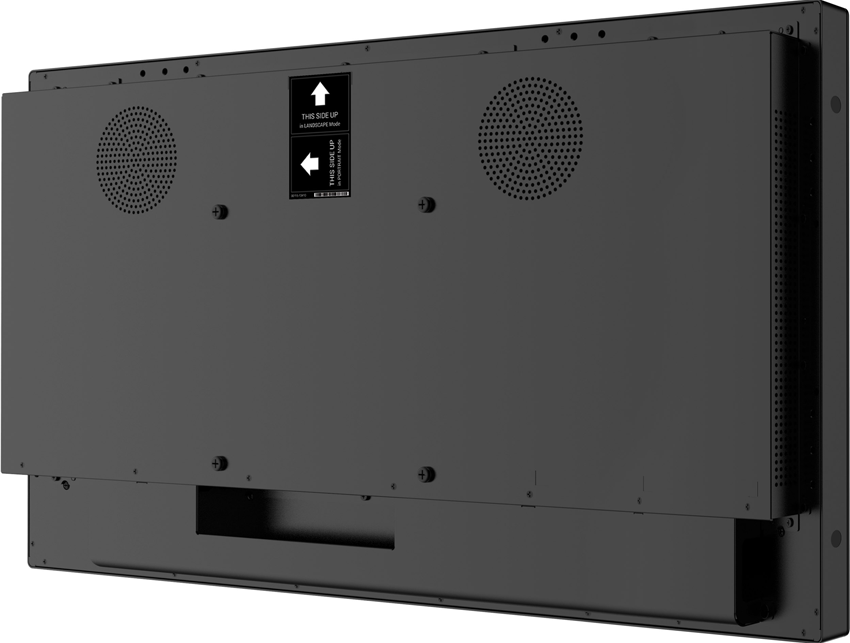

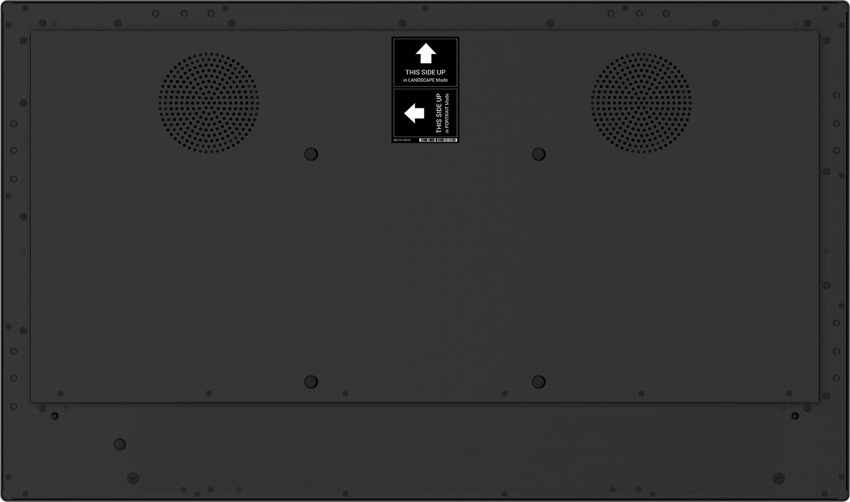

The ProLite TF3239AS-B1AG touch display from iiyama is designed for seamless integration and maximum flexibility. Thanks to open frame mounting holes, rounded corners and edge-to-edge glass, you get a seamless viewing experience and a perfect, gapless fit - ideal for kiosk systems. This design makes it easy to fit into cabinets or pedestals and even allows you to mount and install the display in a wall or piece of furniture of your choice. The TF3239AS-B1AG display is compliant with the 200 x 200 mm VESA mounting standard. Depending on how you want to use the multi-touch monitor, various brackets, stands or trolleys are available and, thanks to the weight of 13.2 kg, are also easily possible. Simply use these two parameters to find the right mount for youat here .

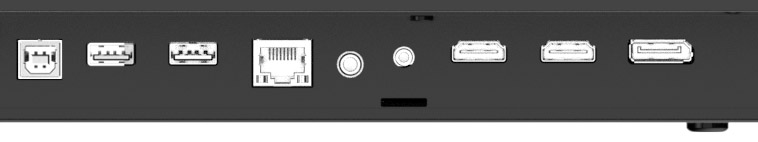

In terms of connections, iiyama's ProLite TF3239AS-B1AG offers you two HDMI 2.0 connections and 1 DisplayPort 1.2 connection. You can also connect the display to your LAN switch or router via the RJ45 connection and use your usual PC environment, allowing you to quickly put your touch display into operation. Two 10-watt speakers are already integrated so that you can remain mobile. For example, the loudspeakers can be used if you want to reorganise the shop floor at regular intervals and the touch display needs to be set up in a different location each time. The display is powered via the mains cable supplied.
On the subject of longevity, it should also be mentioned that iiyama offers you a 3-year guarantee on the ProLite TF3239AS-B1AG.
| GTIN/EAN: | 4948570123865 |
|---|---|
| Manufacturer product number: | TF3239AS-B1AG |
| Taric: | 85285291 |
| Product weight in kg: | 13.2 |
| Scope of delivery: | iiyama TF3239AS-B1AG display, remote control incl. batteries, power cable, USB cable, HDMI cable, DisplayPort cable, cable cover, commissioning guide, safety instructions |
| Dimensions W x H x D: | 74.62 x 44.07 x 6.24 |
| Only for commercial customers: | Yes |
| EEK class: | F |
| Special features: | Face-Up, bonded kapazitives Touch-Display, Open Frame |
| Notices: | Helligkeit 500 cd/m² (ohne Touch Panel) |
| Security: | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Airplay possible: | No |
| Alignment: | Landscape (landscape format), Portrait (portrait format) |
| Areas of application: | Hotel industry, Business, Retail, Culture, Education, public institutions |
| Bluetooth: | No |
| Brightness: | 435 cd/m² |
| Bundle: | No |
| Category: | Digital Signage, Schaufenster, Touch Display |
| Colour: | Black |
| Contrast: | 1200:1 |
| Daisy Chain: | No |
| Delivery includes stand: | No |
| Double-sided display: | No |
| Format: | 16:9 |
| Frame: | 22,0 mm (O/L/R/U) |
| Frame rate: | 60 Hz |
| HDBaseT: | No |
| HDCP: | Yes |
| HDR: | No |
| IP certification: | IP65 front / IP54 rear |
| Inputs: | 1 x DisplayPort, 2 x USB 2.0, 1 x RS232C, 2 x HDMI, 1 x RJ45 |
| Integrated loudspeaker: | 2 |
| Integrated storage space: | 32 GB |
| Interactive: | Yes |
| Load capacity glass: | 3H |
| Manufacturer's warranty: | 3 years |
| Media player: | Yes |
| Mirroring (Windows / Android): | No |
| Mounting options: | Wall, Standfuß, Rollwagen, Face-Up |
| Operating system integrated: | Android 11 |
| Outputs: | 1 x audio (3.5mm) |
| Panel: | IPS |
| Permissible humidity during operation: | 20 - 80% (nicht kondensierend) |
| Plug-in PC possible: | No |
| Polarisation filter: | No |
| Power consumption max.: | 50 Watt |
| Power per speaker: | 10 Watt |
| Remote control included: | Yes |
| Resolution in pixels: | 1920 x 1080 |
| Response time: | 8 ms |
| Runtime release: | 24/7 |
| Screen diagonal: | 80 cm |
| Screen size in inches: | 32 |
| Software included: | iiSignage2, FailOver, EShare |
| Touch points: | 40 |
| VESA standard: | 200x200 |
| Video wall function: | No |
| Viewpoint: | 178°/ 178° |
| Wall bracket included: | No |
| WiFi: | No |
| max. operating temperature: | +40°C |
| min. Operating temperature: | 0°C |
| Open Frame: | Ja |
